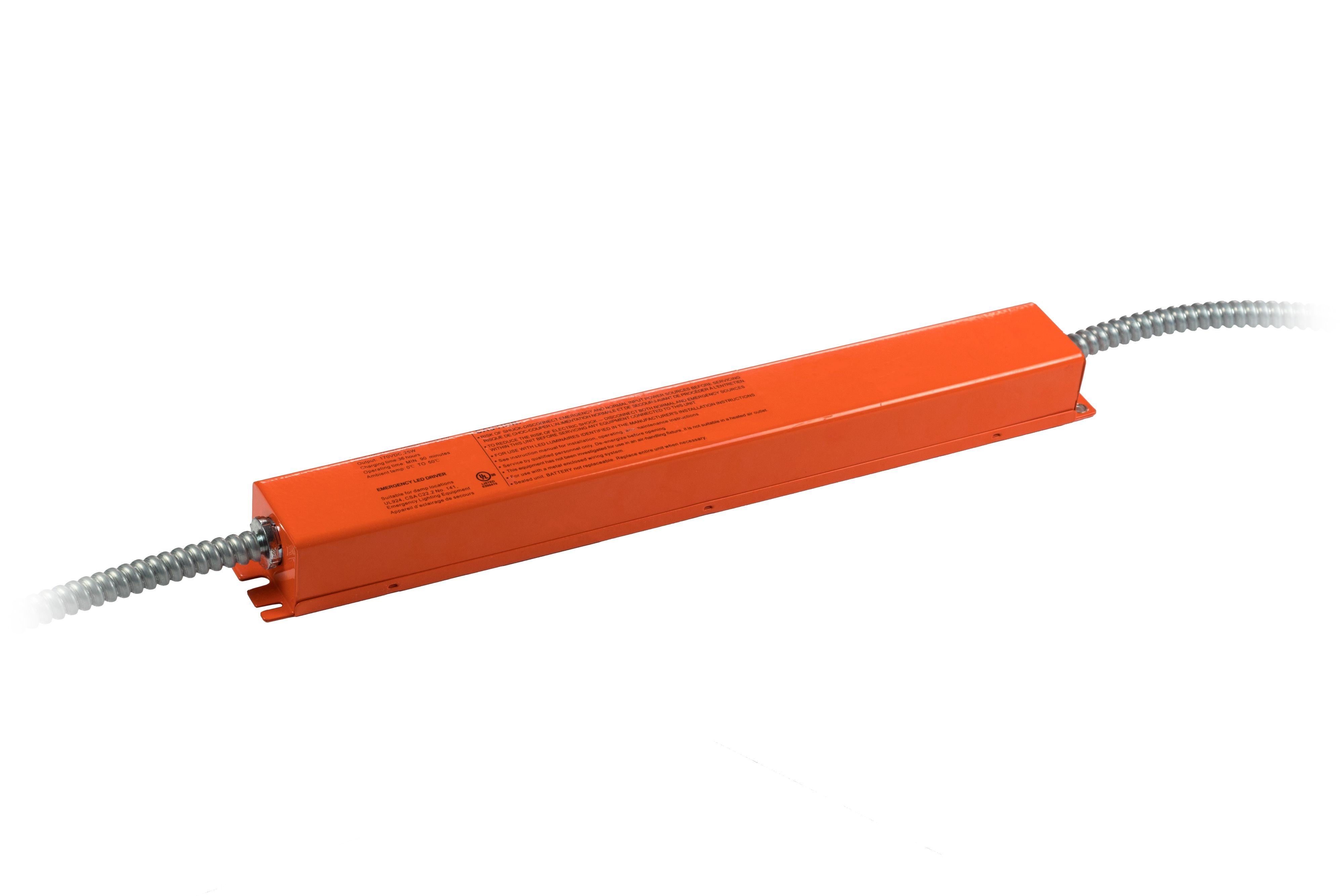

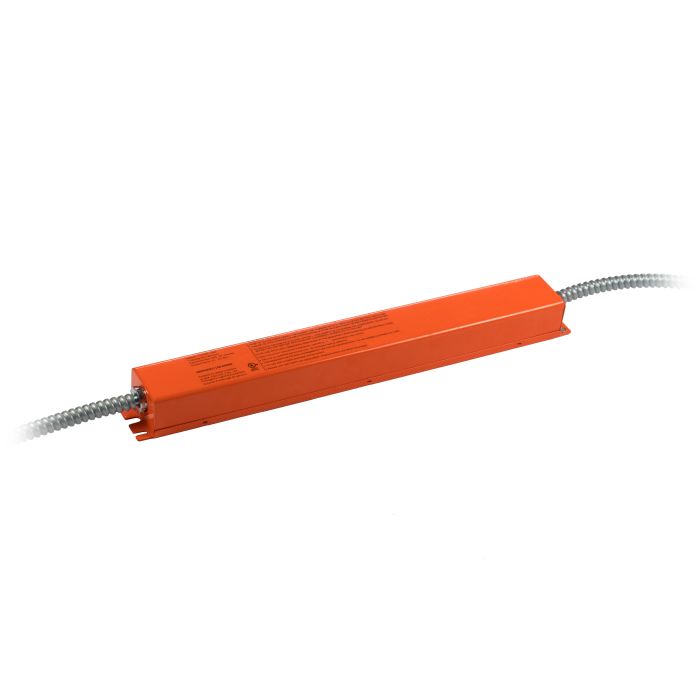

| LD512-25EM-V120AC : LED Emergency Backup/Inverter
Downloads
?
Project Folder
Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.
Description
In the event of a power failure, the LED Emergency backup switches to the emergency mode and operates the existing fixture for 90 minutes. The 170 Vdc output during emergency mode supplements the AC LED driver to power the fixture (≤25W).
The unit contains a battery, charger, and converter circuit in a single enclosure.
Benefits
- Long life high temperature recyclable Lithium battery.
- Includes test switch and charge indicator accessory kit.
- For use with switched or unswitched fixtures
- Meets or exceeds all National Electrical Code and Life Safety Code Emergency Lighting
- Simple 120VAC Hook Up to fixture.
- Mounts Remotely near the fixture
- 29W Wats Maximum Power Draw.
Available Features
?
Available Features
Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.
Available Features
Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.
