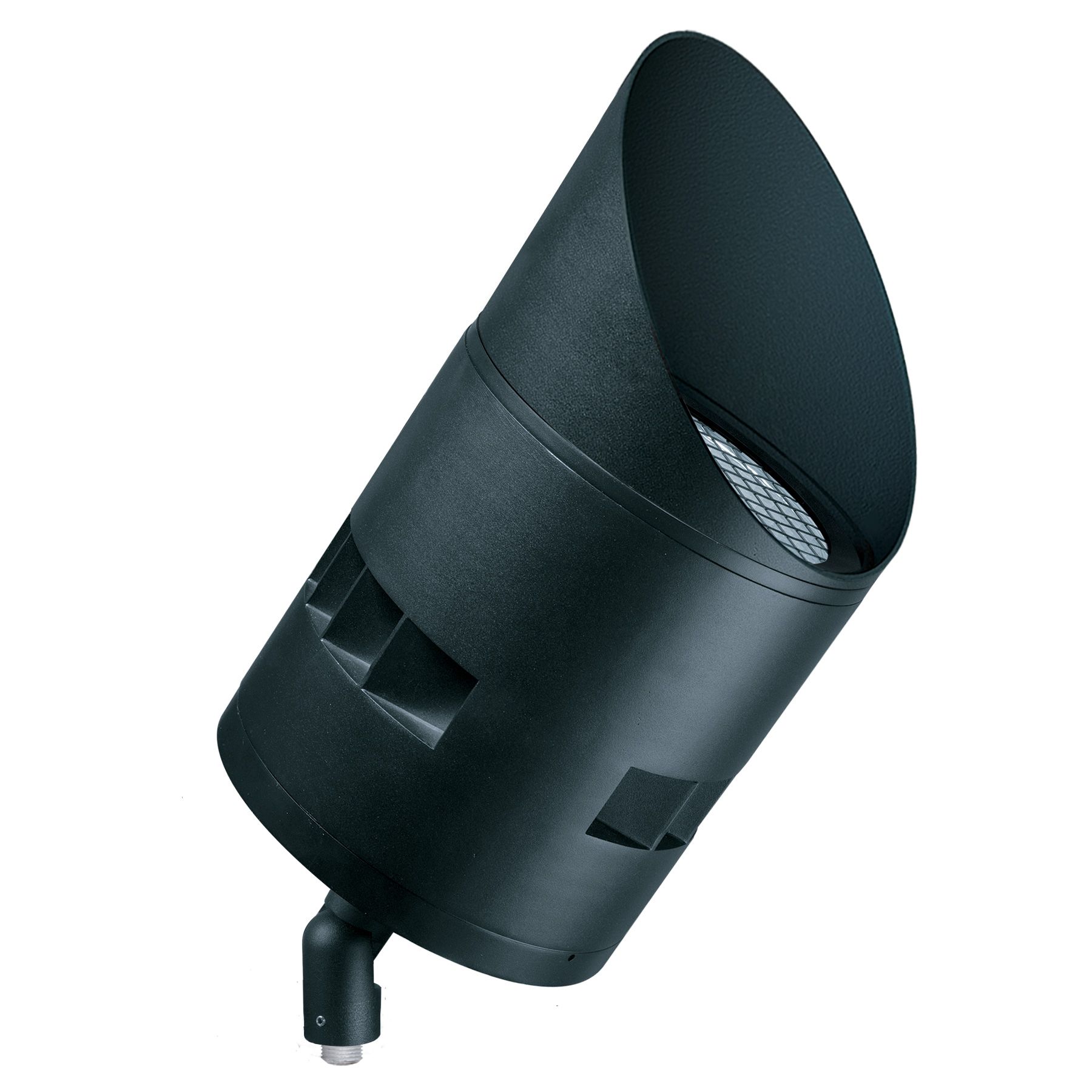

AG2380 : 8" Above Grade Round 7500lm-16000lm (70W-160W)

Description

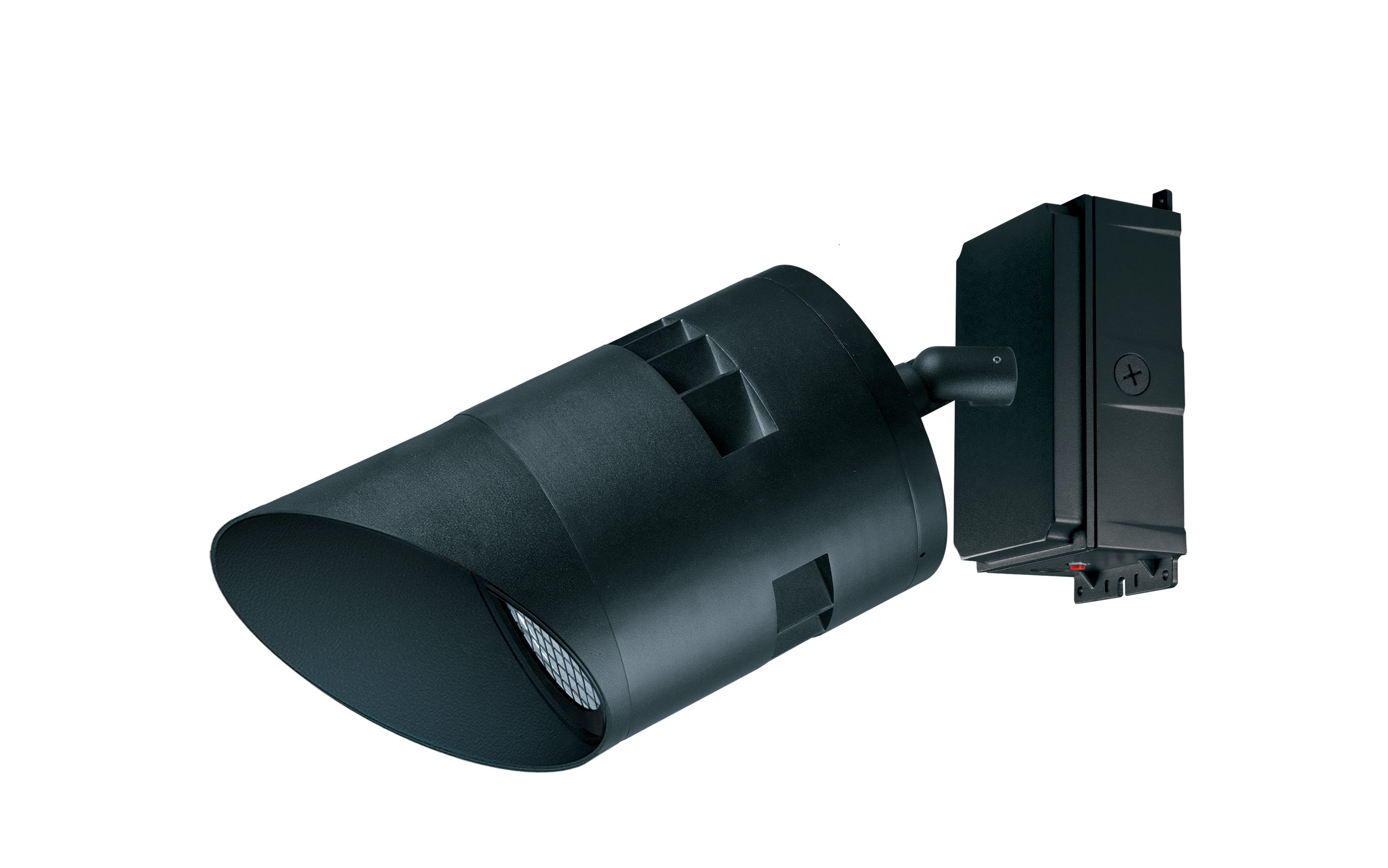

The AG series above-grade floodlight is suitable for surface ceiling, surface wall, or pendant stem mounts in both interior and outdoor settings. The die-cast joint allows for 180° tilt and 360° swivel adjustability to create several configurations.

Benefits

  • Expansive lumen range of 7,500lm (70W) to 16,000lm (160W)
  • Multiple Dimming Options with custom capabilities
  • Matching wall and ceiling mount profiles
  • 120V/277V Input options
  • Multiple Beam Spreads and Color Temperature
  • Weighs 12 lb
  • 90 CRI Standard

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Wet Listed
  • ETL LISTED
  • Outdoor
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Adjustable
  • Downlight
  • Uplight
  • 120V
  • 277V

Order Configurator

Video

1 (UE-DUN) and (-DIN) not available with (-L090) 9000lm (80W) or (-L160) 16000lm (160W).
2 Stem mounts can be adjusted in the field. See instructions.
3 (-TTW) Tunable White via two 0-10V dimming controls. 10-14 week lead time.
4 (UE-DMX) dimming via 0-10V to DMX converter.
5 5000K Color Temperature only available in 80 CRI.
6 (UE-D10P1) not available with (-L120) 12000lm (110W) or (-L160) 16000lm (160W).
