| CH6SHL : 6" C • Series Super Low Glare - Shallow LED New Construction 1000lm - 1800lm (10W-20W)

6" C • Series Super Low Glare - Shallow LED New Construction 1000lm - 1800lm (10W-20W)
6" C • Series Super Low Glare - Shallow LED New Construction 1000lm - 1800lm (10W-20W) 6" C • Series Super Low Glare - Shallow LED New Construction 1000lm - 1800lm (10W-20W) 6" C • Series Super Low Glare - Shallow LED New Construction 1000lm - 1800lm (10W-20W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

Architectural/Commercial-grade super-low glare, shallow recessed lensed LED luminaire is for new construction projects where there is minimal plenum air-space in ceiling. Deeply recessed lens provides reduced glare and visual comfort.

Benefits

  • Deeply recessed lens and 65.5° visual cutoff for reduced glare

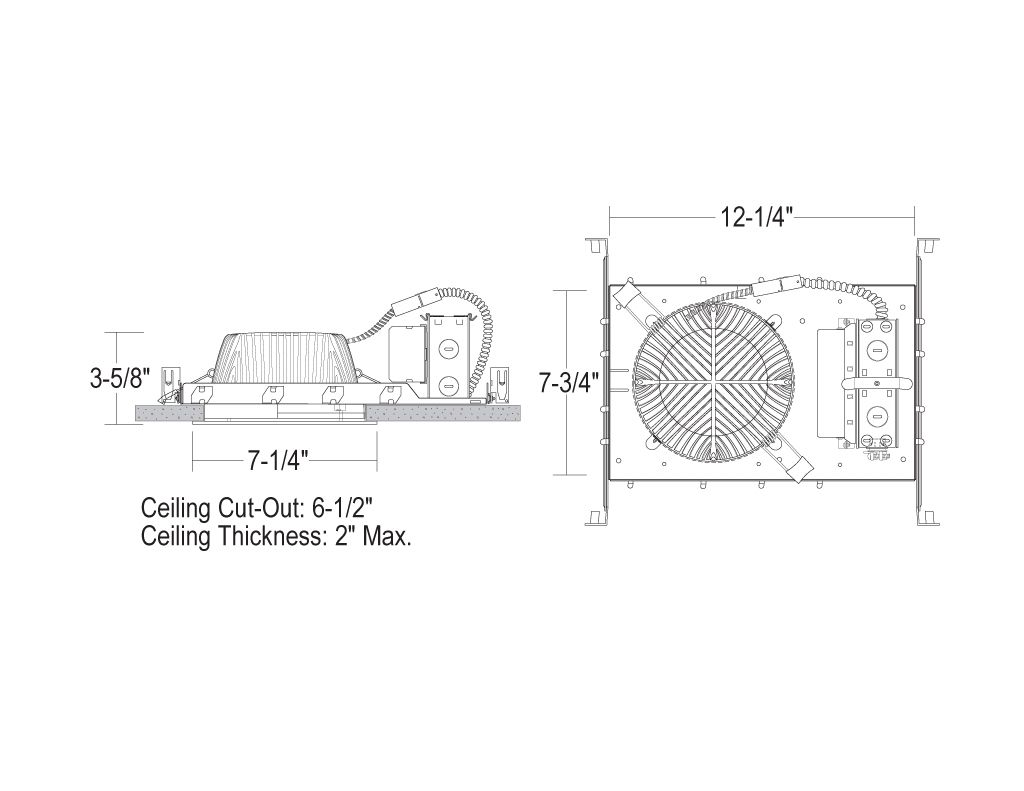

  • Shallow 3-5/8" depth for ceilings with minimal plenum air-space
  • Non-conductive dead-front flanged option (-LENS) for wet locations
  • 83 CRI

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Chicago Plenum
  • Damp Location
  • Emergency
  • ETL LISTED
  • Title 24
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • QuickShip
    ?

    Quick Ship

    LITON’s Quick Ship catalog was designed for the purpose of expediting the shipping process on some of our most popular luminaires.

    Quick Ship items are available to ship within 10 business days on a first-come-first-served basis and upon request. In the event that our stock is depleted, Customer Service will provide you with an updated ship date. Quick Ship items that are received by LITON by 3PM Eastern Time will be shipped 10 business days from the date of the order. Orders received after 3PM on a weekend or holiday will be processed first thing the next business day.

    The Quick Ship commitment applies only to items listed on this webpage, so we ask that customers submit separate Quick Ship purchase orders that include ONLY Quick Ship items.

    LITON recommends that customers call to verify stock levels prior to placing orders as stock levels change daily. This program only applies to purchase orders of quantities of individual line items that are 50 pieces or less. All orders should be sent to our special Quick Ship orders email address, qs@liton.com.

    LITON makes no guarantee on actual ship dates. Official ship dates are given after order placement.

  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 All drivers are 120V/277V unless otherwise noted.
2 Extended Lead Time. Consult Factory.
3 Check wiring diagram.

Dimming Diagrams
