| LRALD6 : 6" Architectural LED Retrofit (1000/1500/2300/3000 Lumen LED)

Discontinued

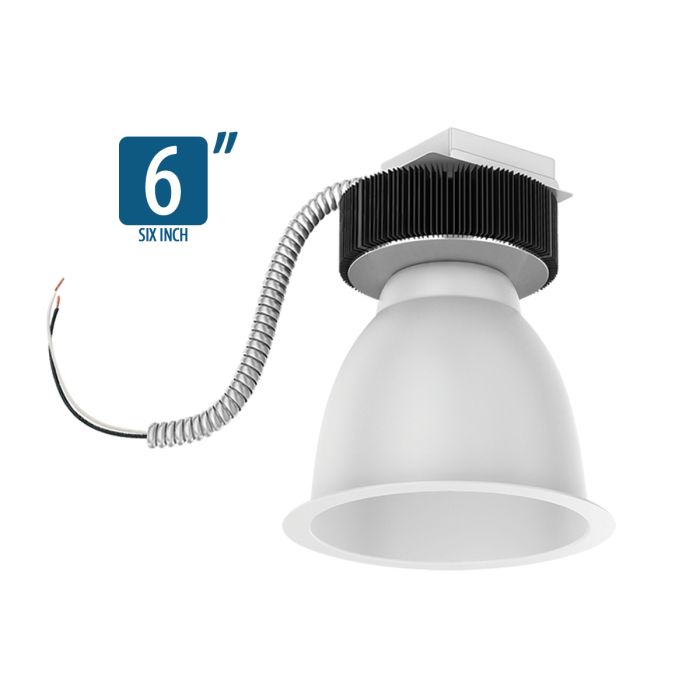

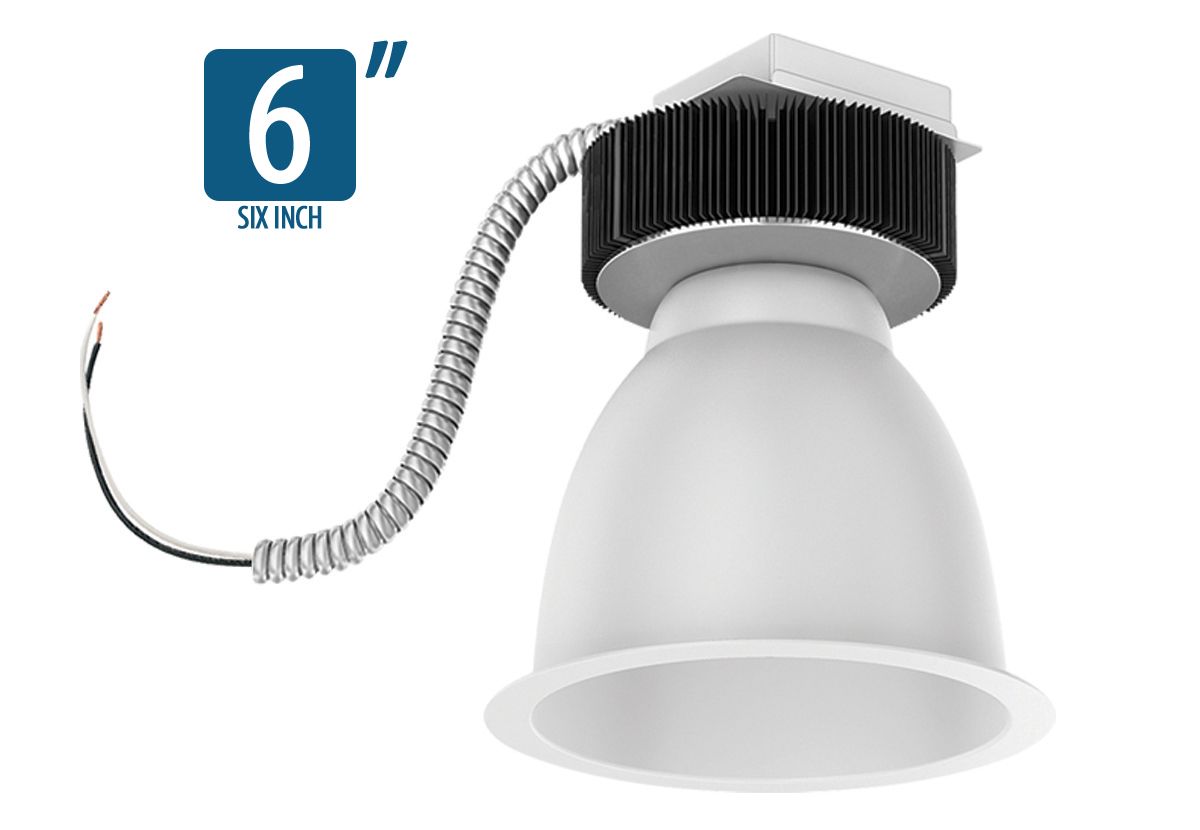

6" Architectural LED Retrofit (1000/1500/2300/3000 Lumen LED)
6" Architectural LED Retrofit (1000/1500/2300/3000 Lumen LED) 6" Architectural LED Retrofit (1000/1500/2300/3000 Lumen LED) 6" Architectural LED Retrofit (1000/1500/2300/3000 Lumen LED) 6" Architectural LED Retrofit (1000/1500/2300/3000 Lumen LED)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

Commercial Retrofit for Open Frame Incandescent, HID and CFL Downlights.

UPDATED VERSION (Click Here)

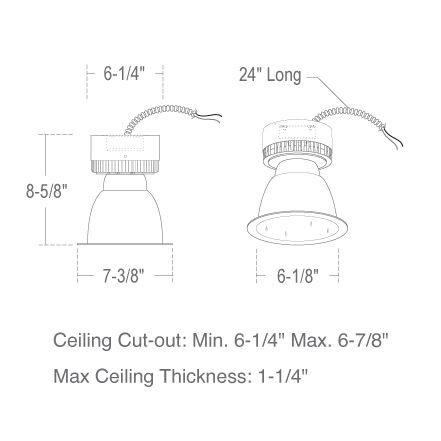

 Application Dimensions

Ceiling Cut-out Min: 6.25" (159mm)
Ceiling Cut-out Max: 6.875" (175mm)
Flange Diameter: 7.375" (187mm)

Benefits

  • Easily installed into existing commercial style frame-in kits
  • 0-10V Dimming Option
  • Self-flanged trim design for hassle-free installations
  • Exclusive UniDimTM Universal LED Dimming Option works with 0-10V, ELV and Incandescent Control Systems

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Damp Location
  • Energy Star Qualified
    ?

    Energy Star Qualified

    LITON Fixtures that have earned the ENERGY STAR certification deliver exceptional features, while using less energy. Saving energy helps you save money on utility bills and protect the environment by reducing greenhouse gas emissions in the fight against climate change. The Part Numbers Listed Here can be found on the Energy Star website. Items with "X" refer to multiple finishes/options available. If you have trouble finding a part please email webcomments@liton.com.

  • ETL LISTED
  • US Assembled
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

* Extended lead time may apply for quantities over 100.

347V Input with 0-10V Dimming available. Consult factory for lead times

Dimming Diagrams

Energy Star Qualified Items

  • LRALD6_240-R25UE_-DUN-T35
  • LRALD6_350-R40UE_-DUN-T35
