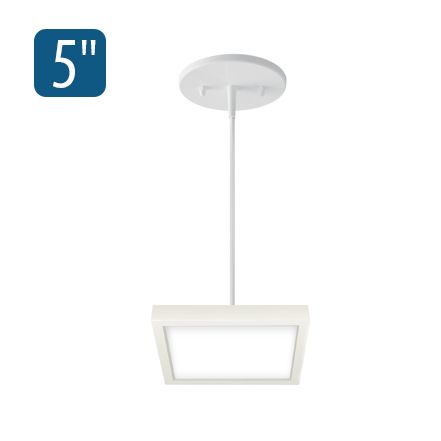

LCMPD5QP : 5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W)

5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W)
5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W) 5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W) 5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W) 5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W) 5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W) 5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W) 5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W) 5" LumenPad Square LED Downlight Pendant Mount 1000lm (11W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

The 5" LumenPad Square LED Downlight Pendant Mount floats with elegance in contemporary architectural applications, a unique combination of innovative, elegantly minimalist design and high-quality LED performance. The luminaire is perfect for Retrofit, New Construction and Remodel Applications in low to medium height ceilings. Super thin profile is unobtrusive in design and has low glare. Lens is a Polycarbonate Frosted White Lens.

Benefits

  • 11W, 1000 Lumen Package
  • Color Rendering Index: 90 CRI
  • Lamp Equivalent: 65W BR30
  • Super Slim 1” thick with die-cast aluminum frame
  • Field-adjustable, 6' max. length Pendant
  • 3-Year Warranty

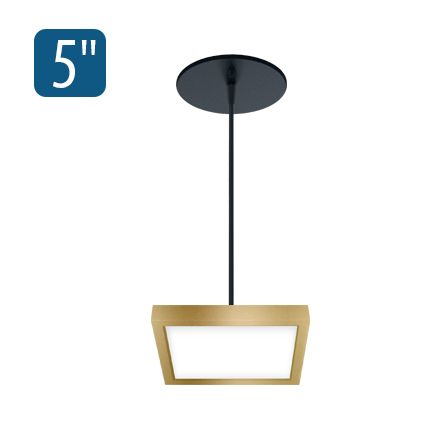

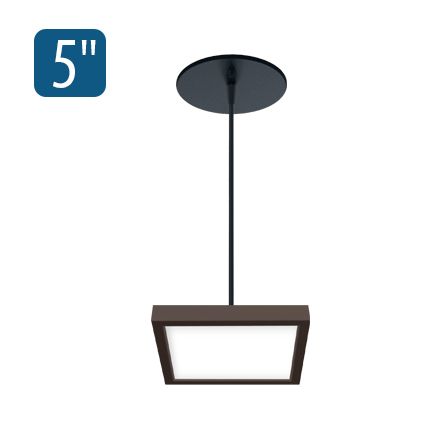

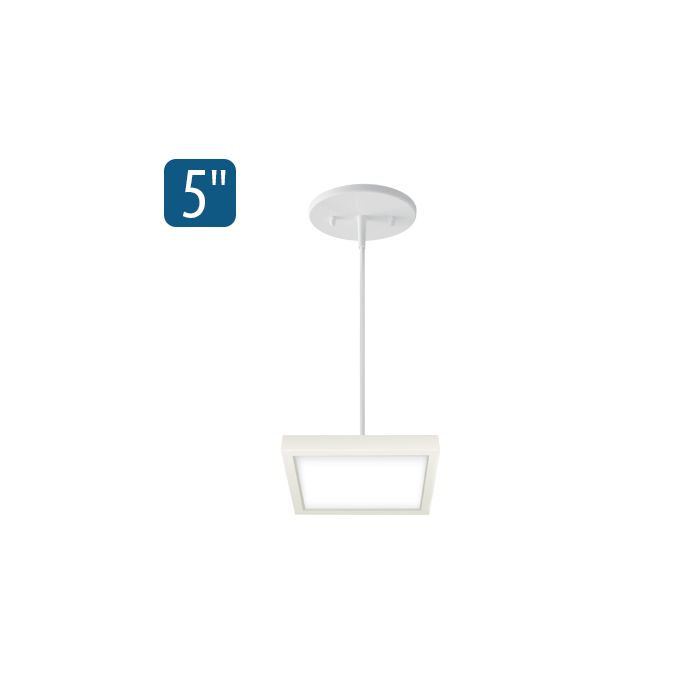

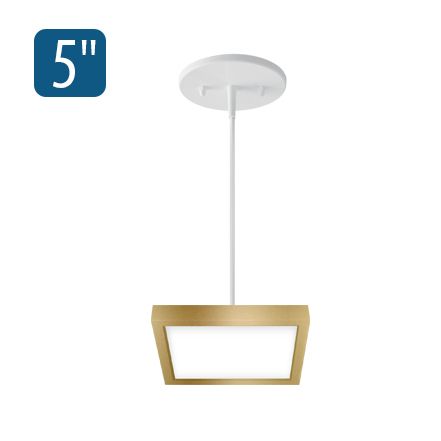

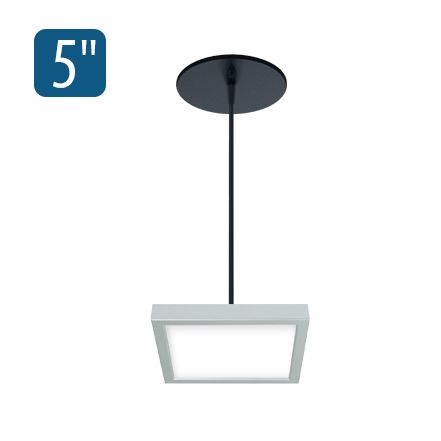

  • Black, Bronze, Silver and Matt Gold finishes available
  • California Title 24/JA8 Compliant

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • ETL LISTED
  • Title 24
  • US Assembled
  • Downlight
  • Uplight
  • 120V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

2 California Title 24/JA8 compliant with (Blank) ELV dimming (120V) only.
3 Requires 4" Octagon Electrical Box, 2-1/8" deep min. to install this luminaire.
4 Remote Emergency Battery Back Up Option only available for (UE-D10).
5 Special Order. Extended lead time.
6 Not available for Uplight.
7 Silver and Bronze finish comes standard with Black pendant mounting bracket and cord.

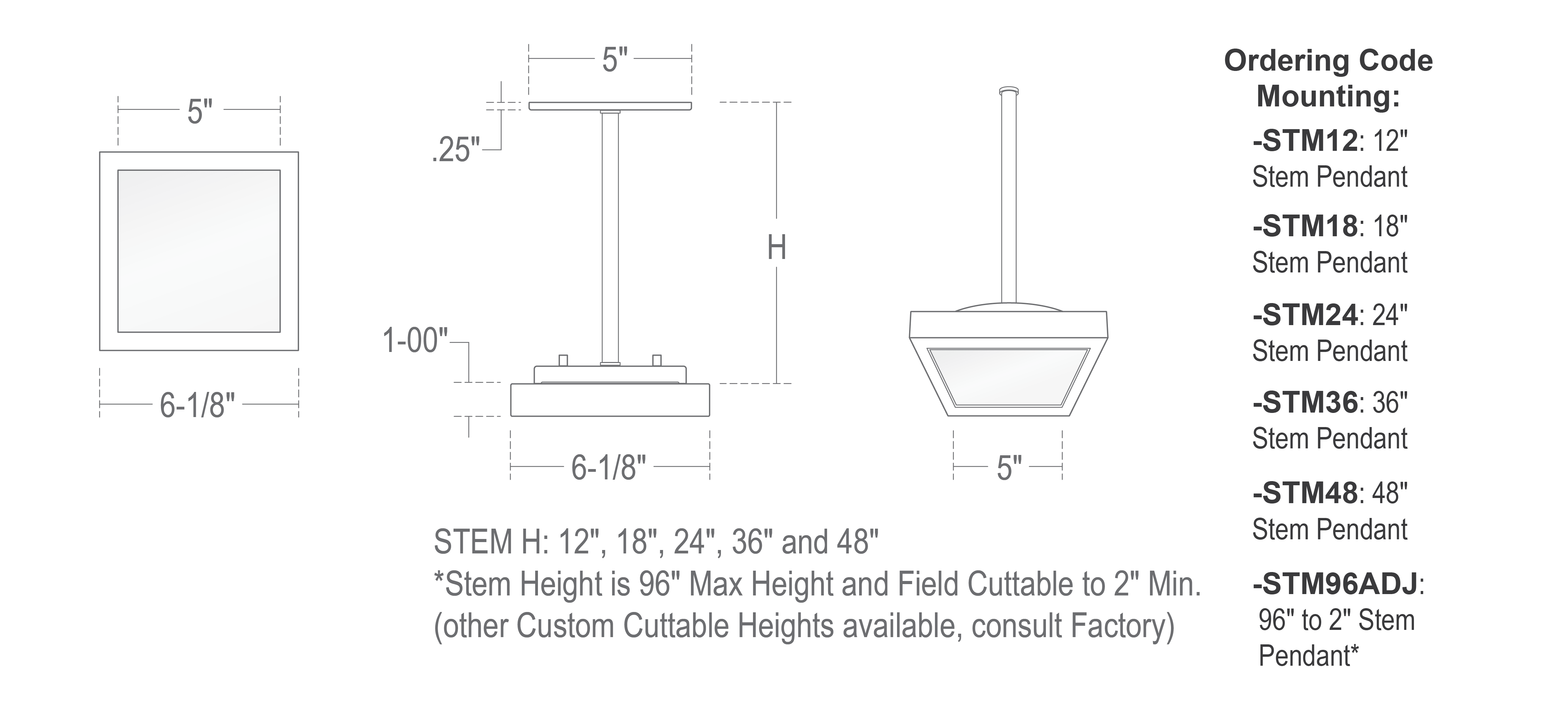

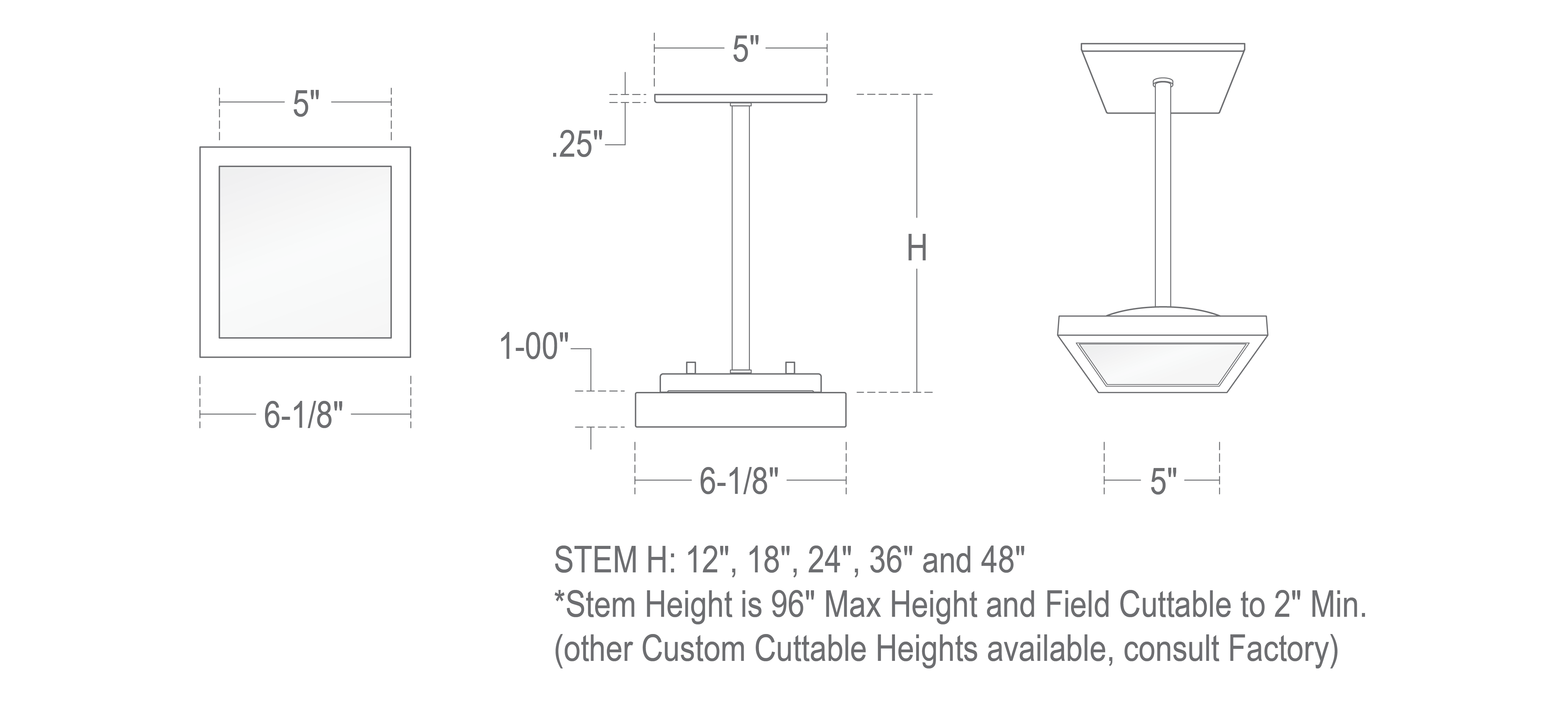

* Stem height is 96" max. height and field cuttable to 2" min. (other custom cuttable heights available. Consult factory)

Description

LITON is proud to introduce our new super-sleek, super-slim 5" Square Lumen Pads! Offering a unique combination of innovative, elegantly minimalist design & high-quality LED performance, these ultra-low-profile luminaires are the ideal, easy-install alternatives to recessed lighting for plenum-challenged spaces with low-to-medium (average) ceiling heights.

Dimming Diagrams

Energy Star Qualified Items

None



Title 24/JA8 Compliant Items

  • LCMPD5QP-T27
  • LCMPD5QP-T30
  • LCMPD5QP-T35
  • LCMPD5QP-T40
  • LCMPD5QP-TS354
