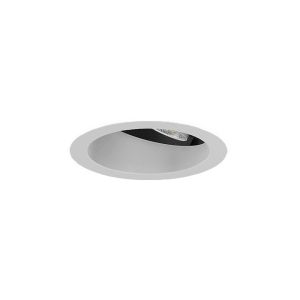

LHAJLD4 : 4" Round LED Adjustable Downlight - 1500lm - 5000lm

4" Round LED Adjustable Downlight - 1500lm - 5000lm 4" Round LED Adjustable Downlight - 1500lm - 5000lm
4" Round LED Adjustable Downlight - 1500lm - 5000lm
4" Round LED Adjustable Downlight - 1500lm - 5000lm 4" Round LED Adjustable Downlight - 1500lm - 5000lm 4" Round LED Adjustable Downlight - 1500lm - 5000lm 4" Round LED Adjustable Downlight - 1500lm - 5000lm
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

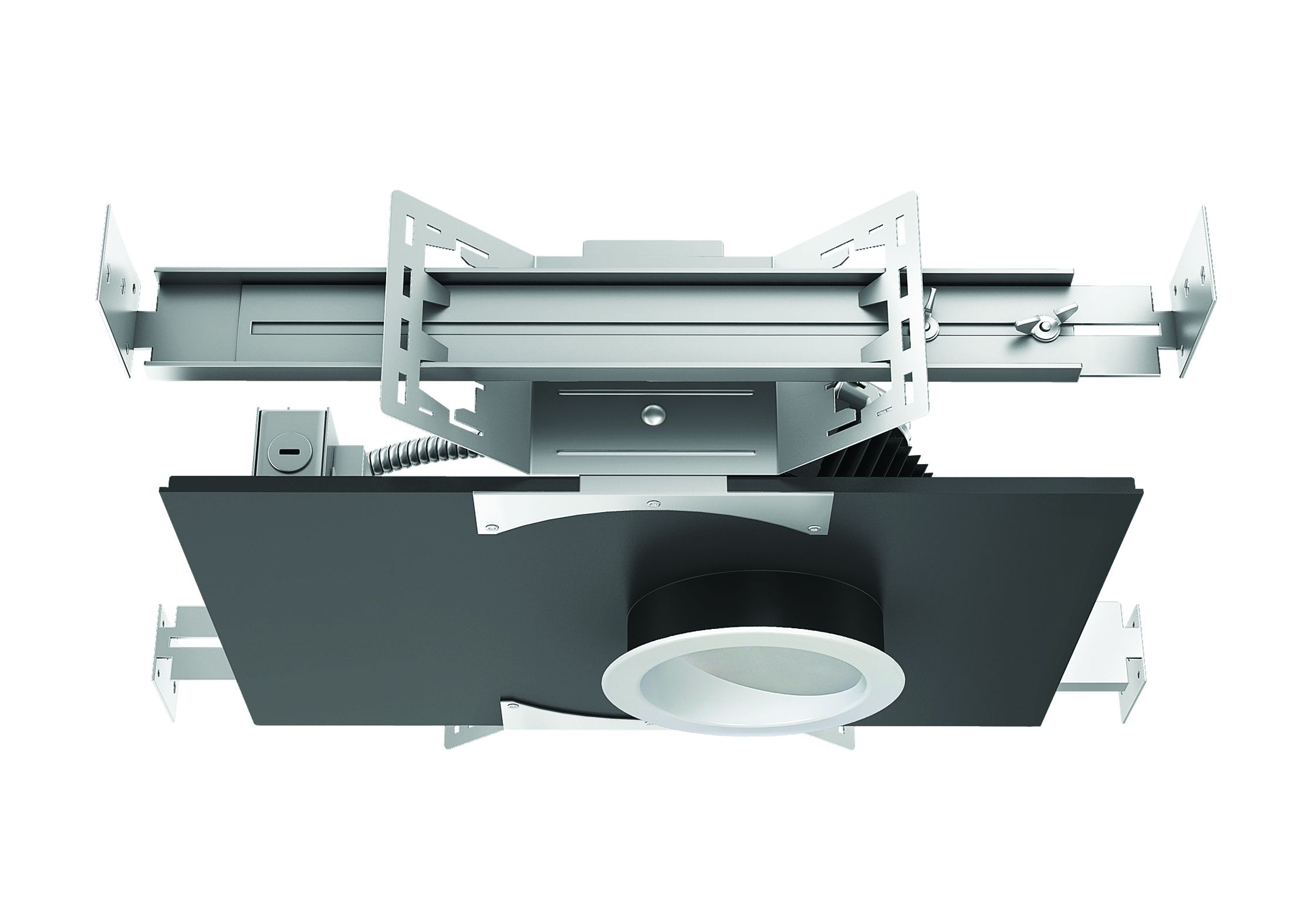

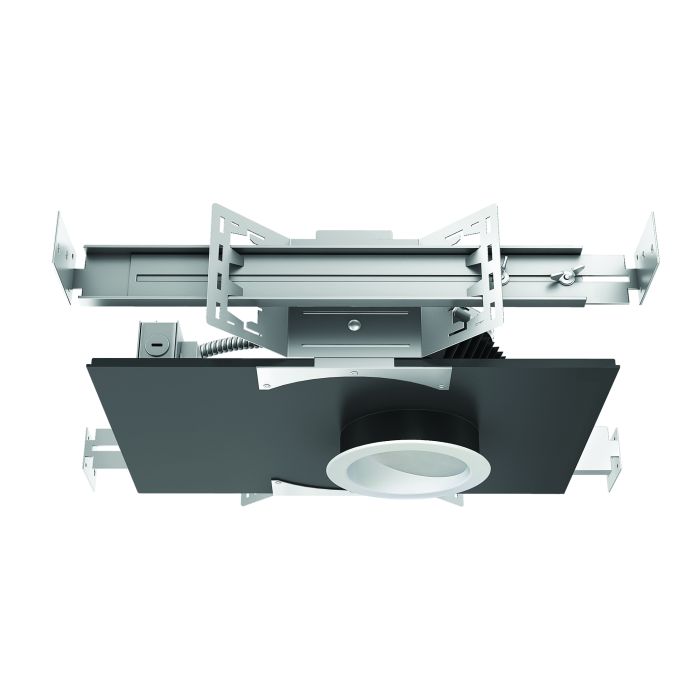

Architectural 4” Adjustable Round LED Housings are designed for medium to high ceiling heights in retail, hospitality, commercial and architectural applications. Advanced ‘hot-aiming’ mechanism allows precise and lockable positioning of the square trim prior to finishing the ceiling. Post-installation adjustment of the beam tilt is possible from below the fixture.

Benefits

  • Features Cree TrueWhite® Technology

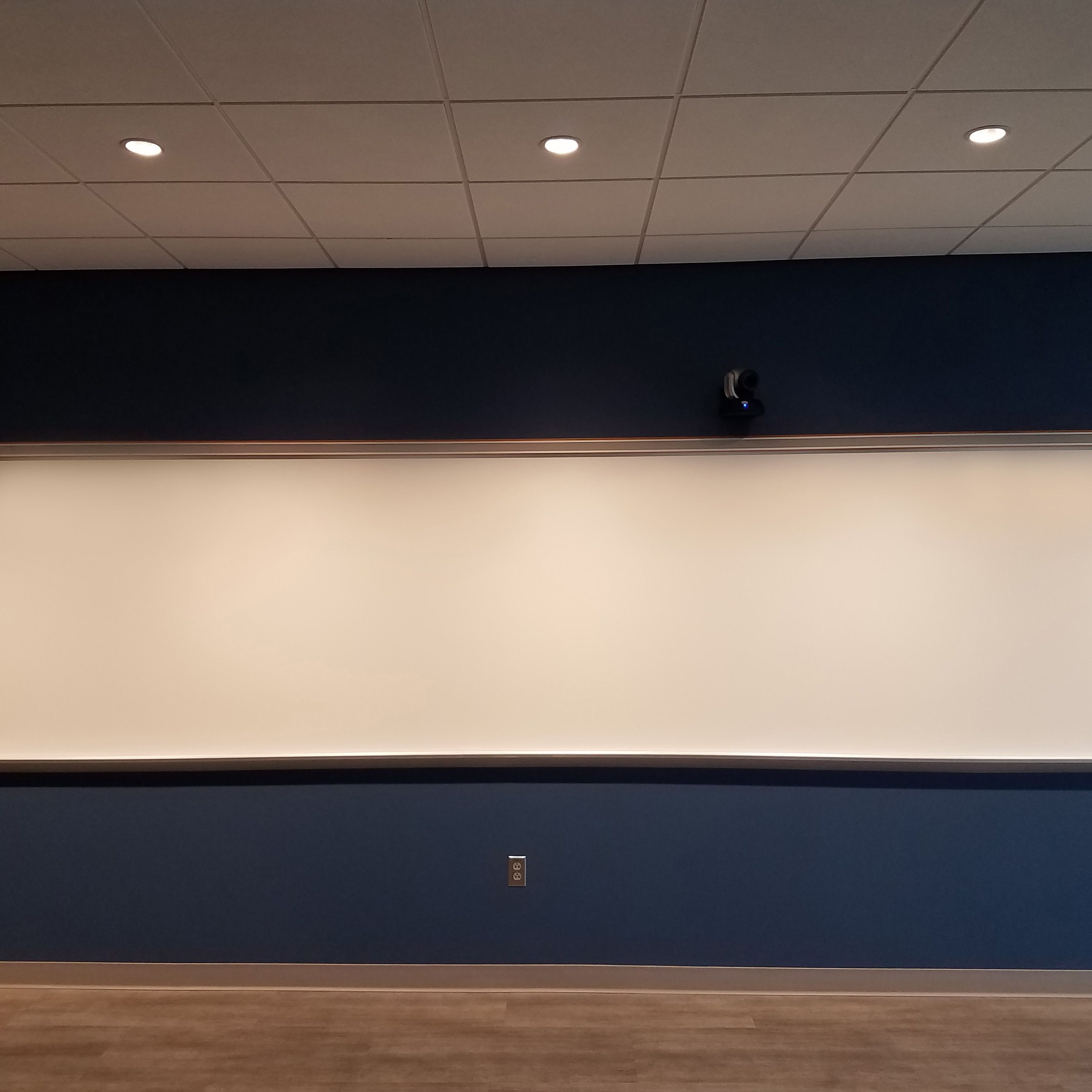

  • Functions as a Downlight, Wall Wash or Accent Light
  • Internal adjustments allow precise aiming of the beam
  • Round trim collar rotates to allow exact alignment prior to ceiling finish
  • Available with DMX Dimming. Consult Factory

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Damp Location
  • Emergency
  • ETL LISTED
  • Sloped Ceiling
  • US Assembled
  • Dedicated LED
  • Adjustable
  • Downlight
  • Wall Wash
  • QuickShip
    ?

    Quick Ship

    LITON’s Quick Ship catalog was designed for the purpose of expediting the shipping process on some of our most popular luminaires.

    Quick Ship items are available to ship within 10 business days on a first-come-first-served basis and upon request. In the event that our stock is depleted, Customer Service will provide you with an updated ship date. Quick Ship items that are received by LITON by 3PM Eastern Time will be shipped 10 business days from the date of the order. Orders received after 3PM on a weekend or holiday will be processed first thing the next business day.

    The Quick Ship commitment applies only to items listed on this webpage, so we ask that customers submit separate Quick Ship purchase orders that include ONLY Quick Ship items.

    LITON recommends that customers call to verify stock levels prior to placing orders as stock levels change daily. This program only applies to purchase orders of quantities of individual line items that are 50 pieces or less. All orders should be sent to our special Quick Ship orders email address, qs@liton.com.

    LITON makes no guarantee on actual ship dates. Official ship dates are given after order placement.

  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 All drivers are 120V/277V unless otherwise noted.
2 Warm Dimming only available for 1500lm, 2000lm & 2500lm options.
3 Tunable White only available with 0-10V signal via “UE-D10P1” option or DMX signal via “UE-DMX” option for 2000lm, 3000lm & 3500lm option only.
4 EMAC emergency option fully illuminates during power failure.
5 Only available for 9W, 11W,19W and 28W options.

Description

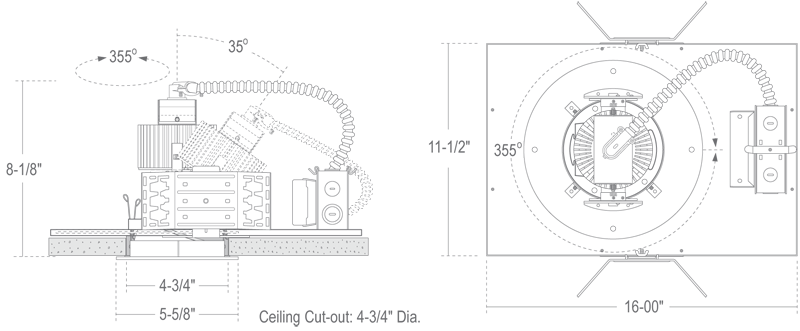

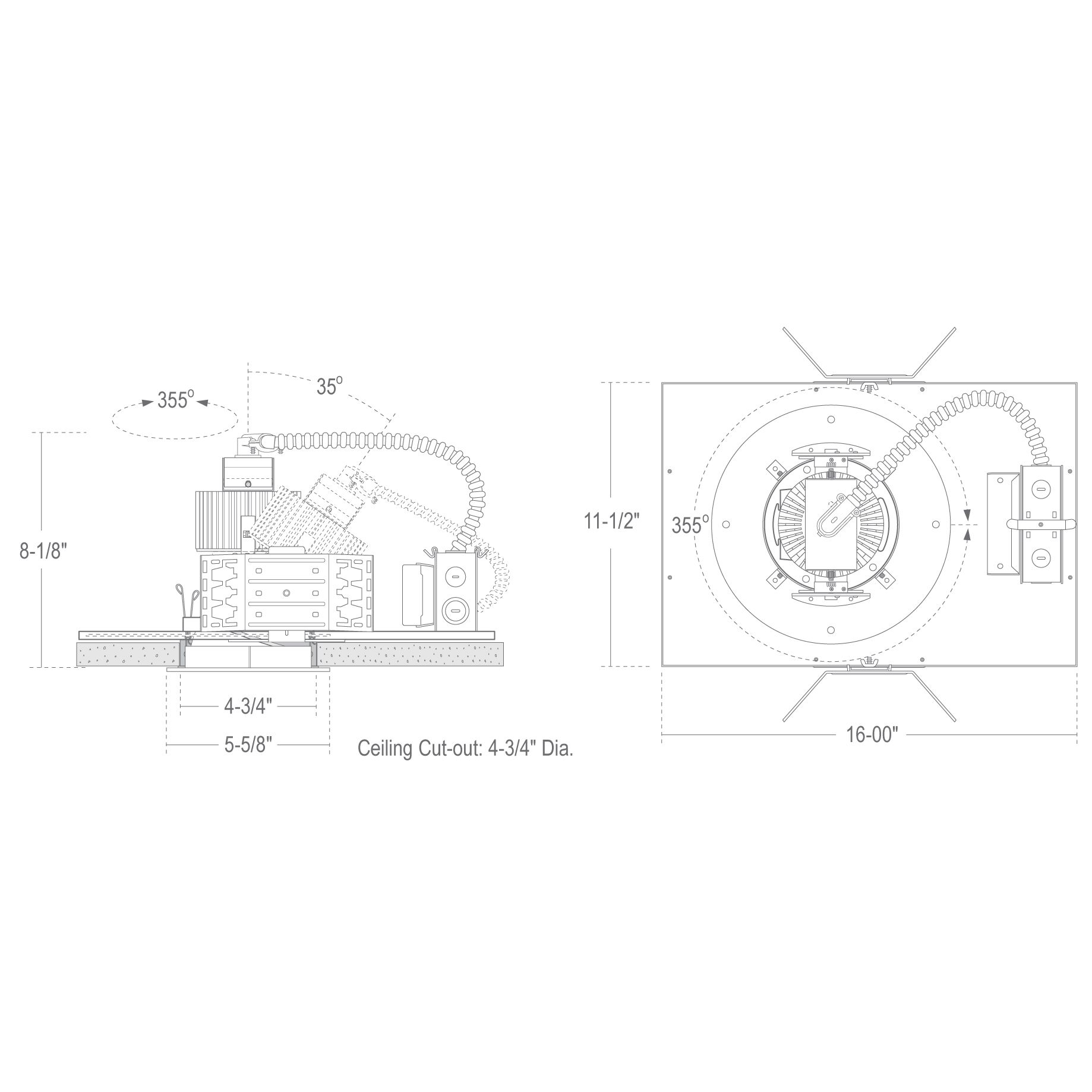

Collar bracket provides 30º of rotation, marked in 5º increments for positioning before drywall installation. Lamp holder assembly allows 35º tilt.

Dimming Diagrams

Quick Ship Items

  • LHAJLD412C025-B45-T30
  • LHAJLD415C035-B45-T30
  • LHAJLD420C050-B45-T30
  • LHAJLD425C070-B45-T30
  • LHAJLD430C085-B45-T30
  • LHAJLD435C105-B45-T30
  • LHAJLD450C140-B45-T30
  • LHAJLD412C025-B45-T40
  • LHAJLD415C035-B45-T40
  • LHAJLD420C050-B45-T40
  • LHAJLD425C070-B45-T40
  • LHAJLD430C085-B45-T40
  • LHAJLD435C105-B45-T40
  • LHAJLD450C140-B45-T40
